Description
All of our metal detectors and geophysical detecting instruments are part of the "FS - Future Series", a line of our latest technology to detect buried objects and underground structures. Beside the measuring instruments it includes our 3D software which assures a detailed analysis of the measured results.

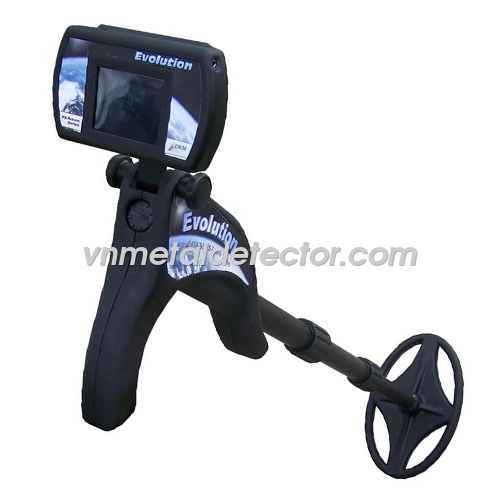

The new 3d ground scanner "Evolution" enforces what the name already promises. This deep scan detector takes another step forward in advanced metal detection technology. It is a stunning blend of functionality, ergonomics and futuristic design.
The device includes the following functionality:
-
Wireless telescopic probe
-
LED-light for searching in the dark
-
Full color display with touch-screen
-
'Live Sound' mode with VLF metal detector
-
'3D Scan' mode with GST/EMSR scanner
A state of the art touch screen display and wireless bluetooth communication between the main unit and probe are only some of the innovative features. This device combines different high-end detection technologies in an extremely small, lightweight and compact easy to handle unit. The telescopic probe makes it easily transportable and rugged enough and suitable for nearly all terrains.
The user interface of the control unit can be operated in the following languages:
-
Deutsch
-
English
-
Français
-
Español
-
عربي
-
فارسی
-
Ελληνικά
-
Türkçe
-
Italiano
-
中文
-
Pусский
The lightweight main unit with touch screen display can be mounted on the telescopic probe or carried on the wrist holder. This makes it comfortable for treasure hunters and prospectors in nearly every environment. With integrated LED lamps it is even ready for the dark.
The device "Evolution" is the best introductory model to step in into the world of 3d ground scanning. It easily combines common metal detector technology with high performance ground scanner technology.
The following technical indications are medial values. During operation small variations are quite possible.
Control unit with display
-
Dimensions (H x W x D) 80 x 140 x 35 mm
-
Weight about 0.2 kg
-
Voltage (Batteries) 2x AA Primary (1.5 V, 2600 mAh) or 2x Rechargeable NiMh (1.2 V, 2600 mAh)
-
Operating time about 4 hours
-
Processor (Executing) ARM7 CPU, 90 Mhz, 256 KB Flash
-
Processor (Controlling) Atmel AtMega CPU, 20 Mhz
-
Interconnect Bluetooth, Class 2
-
Display 2,83" AMOLED with Touchscreen (320 x 240, 262K color)
-
Data memory about 100000 measured values
-
Operating temperature -8 °C - 50 °C
-
Storage temperature -20 °C - 60 °C
-
Air humidity 5 % - 75 %
-
Waterproof No
Telescopic probe
-
Dimensions (H x W x D) 480 - 820 x 135 x 210 mm
-
Weight about 1 kg
-
Voltage (Batteries) 2x AA Primary (1.5 V, 2600 mAh) or 2x Rechargeable NiMh (1.2 V, 2600 mAh)
-
Operating time about 4 hours
-
Processor (Executing) ARM7 CPU, 10 Mhz, 30 KB Flash
-
Processor (Controlling) Atmel AtMega CPU, 20 Mhz
-
Interconnect Bluetooth, Class 2
-
Operating temperature -8 °C - 50 °C
-
Storage temperature -20 °C - 60 °C
-
Air humidity 5 % - 75 %
-
Waterproof No
-
Technology GST/EMSR
-
Sensor technology SCMI-15-D, VLF
Data transmission (Bluetooth)
-
Technology Bluetooth
-
Frequency 2.4 – 2.4835 GHz
-
Maximum Transfer Rate 1 Mbps
-
Receiving Sensitivity -85 dBm
-
Maximum Range approx. 10 m
Computer, minimum requirements
-
CD-ROM drive minimum 4x
-
Interface (Data transmission) USB
-
Free disk space minimum 50 MB
-
Working memory (RAM) minimum 256 MB
-
Graphic card minimum 128 MB, OpenGL-compatible
-
Processor minimum 1.2 GHz
-
Operating system Windows XP, Windows Vista, Windows 7
